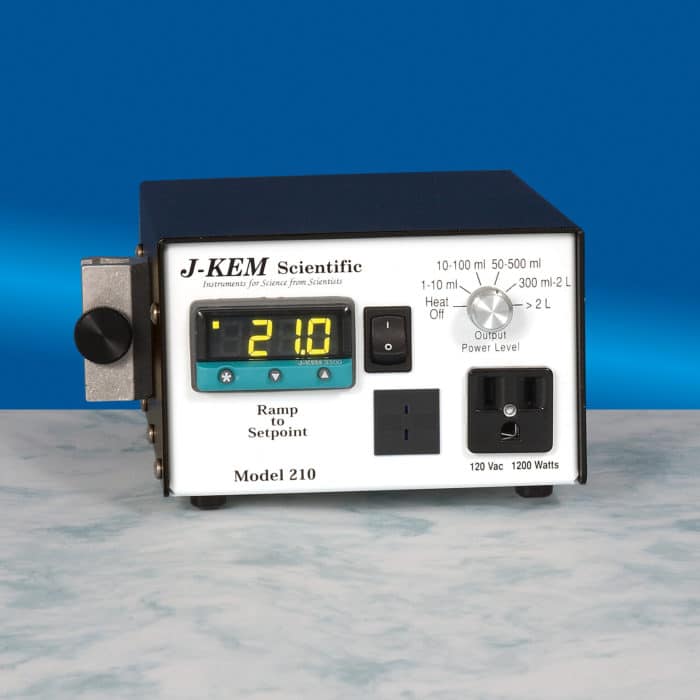

Model 210 Compact, research grade

$1,026.00$1,221.50

J-KEM’s most compact, research-grade controller, yet packed with 1200 watts of power. Sufficient for heating mantles up to 5L in size and most laboratory ovens, hot plates, reaction blocks and other heaters. Contains J-KEM’s patented power control computer which provides 0.1° regulation of anything.

Specifications: 120vac, 10 amps, 1200 watts.
Warranty: 2 Years

The temperature range desired determines the probe/thermocouple type:

J [black] (0 – 800° C)
K [yellow] (-50 – 1200° C)
T [blue]  (-200 – 250° C)
RTD: (-200 – 400° C)

PURCHASE WITH OR WITHOUT SYSTEM ACCESSORIES

Complete system includes: one controller, one Teflon thermocouple (12″ long, 1/8″ diameter), one connecting cord, and one 14/20 joint adapter.

System thermocouples are Teflon-coated  and should not be used above 190° C

Need even more control? Add the KEM-I/O feature: an input/output option that allows your controller to operate external devices like valves and stirrers with digital inputs/outputs.

Need even more safety? Add the loop break alarm feature: guards against user error during reaction set up.

Inquire about NRTL approval.

Academic and volume discounts are available.

3.7/5 (48 Reviews)
Weight 5 lbs
Dimensions 7.4 × 5.25 × 3.25 in
SKU: model-210
