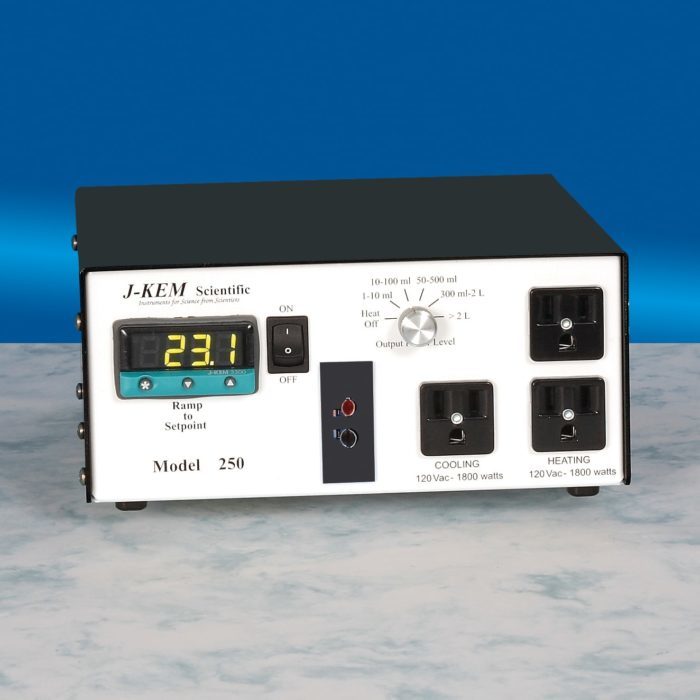

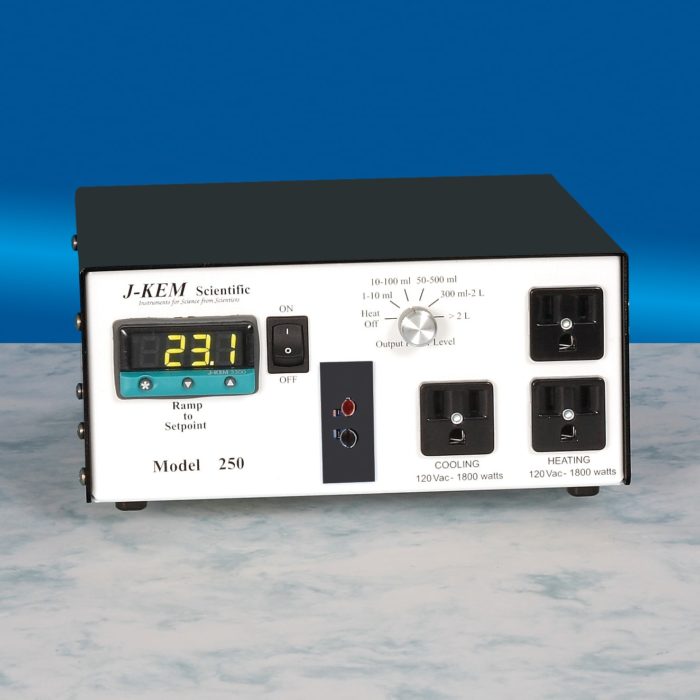

Model 250 Heating and cooling outlets

$1,065.64$1,232.48

The Model 250 has both heating and cooling outlets for maximum versatility. Two heating outlets supply 1800 watts of power for large equipment and heating mantles up to 22L. The third outlet (1800 watts), normally used for cooling, is programmable to supply power below, above, or at the set point. Contains J-KEM’s patented power control computer which provides 0.1° regulation of anything.

Specifications: 120vac, 15 amps, 1800 watts
Warranty: 2 Years

The temperature range desired determines the probe/thermocouple type:

J [black] (0 – 800° C)
K [yellow] (-50 – 1200° C)
T [blue]  (-200 – 250° C)
RTD: (-200 – 400° C)

PURCHASE WITH OR WITHOUT SYSTEM ACCESSORIES

Complete system includes: one controller, one Teflon thermocouple (12″ long, 1/8″ diameter), one connecting cord, and one 14/20 joint adapter.

Recommended: Add on a coolant valve to turn flow off or on in cooling applications.

System thermocouples are Teflon-coated and should not be used above 190° C

Loop break alarm option

Serial Communication option

Academic and volume discounts are available.

4.2/5 (6 Reviews)
Weight 6 lbs
Dimensions 9.25 × 7.75 × 3.25 in
SKU: model-250
