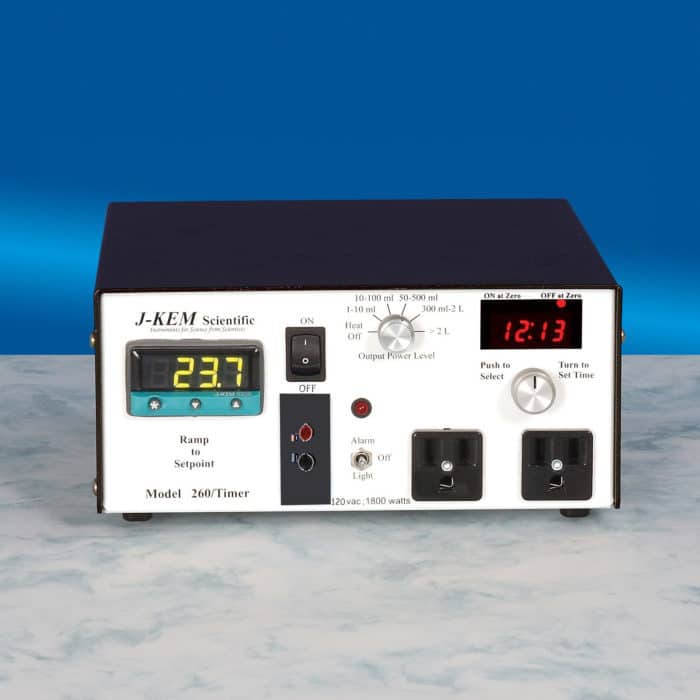

Model 260/Timer Safety, two power outlets for larger equipment


Academic and volume discounts are available

Designed for processes requiring an extra measure of safety. The Model 260/Timer disconnects outlet power if the process temperature exceeds the set point by a user-specified amount, or following recovery from a power failure. Power remains off until the controller is manually reset. Over temperature is signaled by both an indicator lamp and an audible alarm. Contains a 100-hour digital timer to turn heating OFF (or ON) when the time expires. The Model 260 has two power outlets (1800 watts) for large equipment or heating mantles up to 22L. Contains J-KEM’s patented power control computer which provides 0.1° regulation of anything.

Specifications: 120vac, 15 amps, 1800 watts.
Warranty: 2 Years

The temperature range desired determines the probe/thermocouple type:

J [black] (0 – 800° C)
K [yellow] (-50 – 1200° C)
T [blue]  (-200 – 250° C)
RTD: (-200 – 400° C)


Complete system includes: one controller, one Teflon thermocouple (12″ long, 1/8″ diameter), one connecting cord, and one 14/20 joint adapter.

System thermocouples are Teflon-coated and should not be used above 190° C

Need even more control? Add the KEM-I/O feature: an input/output option that allows your controller to operate external devices like valves and stirrers with digital inputs/outputs.

Need even more safety? Add the loop break alarm feature: guards against user error during reaction set up.

Inquire about NRTL approval.

Academic and volume discounts are available.

5/5 (5 Reviews)
Weight 6 lbs
Dimensions 9.25 × 7.75 × 3.5 in
SKU: model-260-timer
