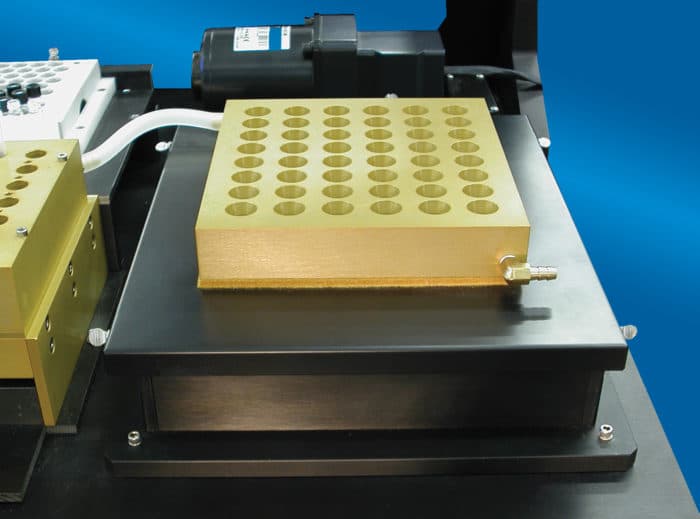

Robotic Shaker

Specially designed for robotic applications, this low profile shaker is less than 5″ tall

The key feature is its ability to home to an absolute X- and Y-coordinate when stopped, with accuracies better than 0.1mm in both the X and Y dimensions

Homing to a known coordinate allows the robot to reliably access modules attached to the shaker’s mounting plate

Triple eccentric drives provide vigorous mixing of loads up to 60 pounds

Dimensions: 12.25″ x 20″ x 4.75″ (WxDxH)
Rotational speeds: 40 – 525 rpm
Maximum load: 60 pounds
Shaking motion: Orbital or linear
Orbital radius: 0.4″ (can be customized)
Communications: USB, RS232, RS485, binary, manual
