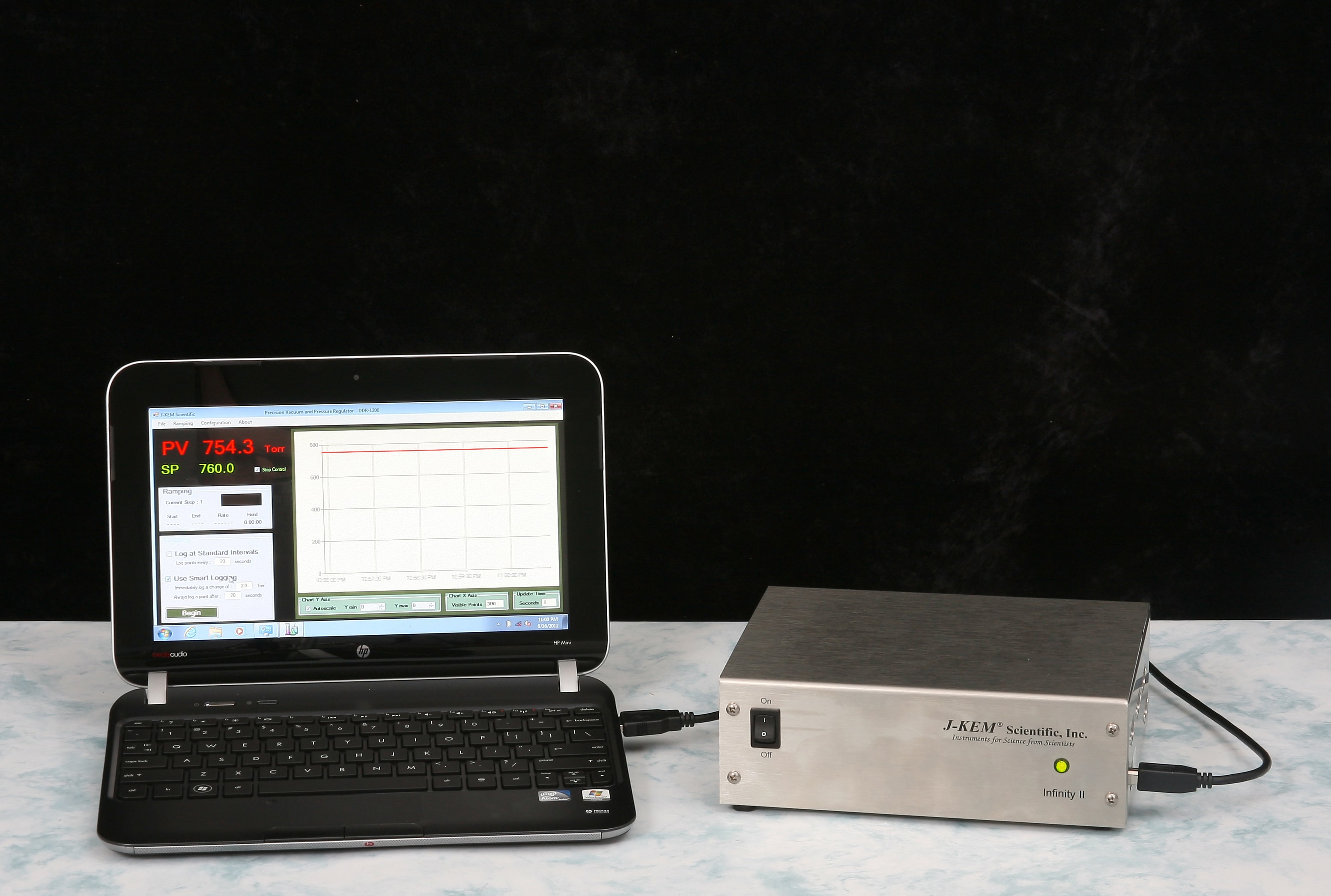

Digital pressure regulator

$2,795.00$5,559.00

Regulation of positive pressures in the range of 0-50 psi (atm pressure).

Gage transducer is standard, but absolute is available on request.

Select the maximum pressure of the controller.

Requires the selection of one proportioning valve.

The optimal PSV value depends on the exact conditions of the procedure. The table below applies to closed systems. For applications with a continuous purge of gas, call J-Kem for assistance.

Cat# System Values Valve CV Price ($)
PSV-2 1ml to 2L 0.033 485.00
PSV-3 25ml to 4L 0.055 485.00
PSV-4 100ml to 22L 0.068 485.00
PSV-5 1L to 50L 0.12 485.00
PSV-5T >12L 0.37 1097.00
PSV-6 >20L 0.7 1097.00
PSV-7 >30L 1.3 1097.00
PSV-8 >40L 2.0 1097.00



Specifications:

Transducer
Diaphragm: Stainless Steel
Accuracy: DVR-1000 .1% // DPR-1100 .25% // DDR-1200 .25%
Proof Pressure: 200%

Controller
Regulation: 0.015% of range
Resolution: 0.1 torr or 0.01 psi
Vapor Path Materials: Stainless Steel and Teflon
Ramp Rates: 100 torr/sec to .1 torr/hr

Fittings 1/4″ SS compression fittings
Warranty: Electronics: 2 years Xducer and Valve: 6 months

Weight: 3lbs
Dimensions: 8″ x 3″ x 6″
